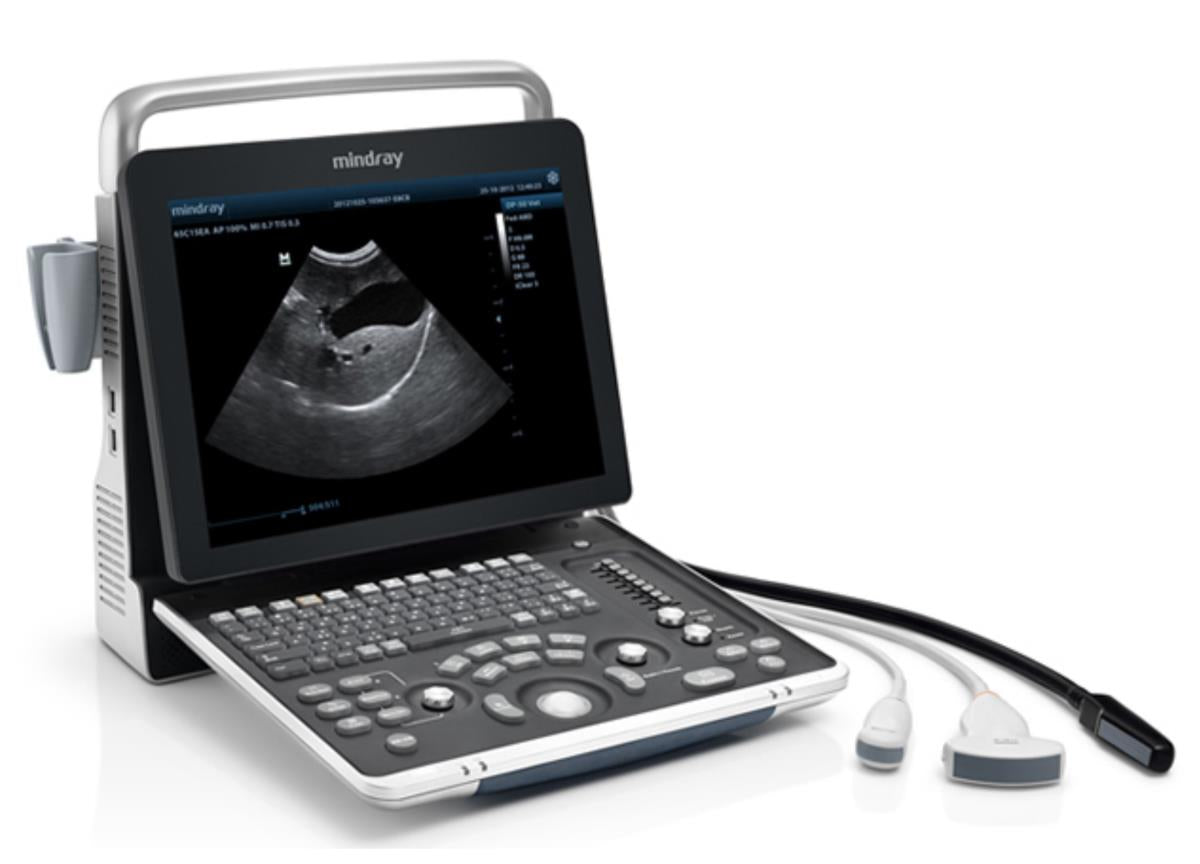

Veterinary Ultrasound System DP‑50 Vet The DP‑50 Vet Veterinary Ultrasound System is a portable black-and-white platform specifically designed for veterinary clinical environments. It combines ergonomic design, advanced imaging technologies, and efficient workflow tools to support a wide range of veterinary applications, from small animal abdominal exams to equine reproductive imaging.

Main Benefits

Sleek and lightweight design enhances mobility and ease of use in busy veterinary settings
15" high-resolution tiltable LCD screen improves viewing comfort during examinations
Phase Shift Harmonics (PSH) imaging provides clearer images with excellent resolution and low noise
iClear noise reduction technology enhances image clarity with sharper edges, smoother tissues, and cleaner anechoic areas
iBeam spatial compounding technology improves contrast and visibility by combining multiple scan angles
iScape panoramic imaging provides an extended view of anatomical structures with forward/backward scanning capability
ExFOV and Trapezoid technologies expand the field of view for convex and linear probes respectively
B‑Steer enables better visualization of needles, nerves, and small vessels during guided procedures
Pulsed Wave (PW) Doppler with Auto Trace provides detailed blood flow analysis for comprehensive diagnosis (optional color Doppler available)
One-touch iTouch for automatic image optimization simplifies workflow
iZoom allows instant full-screen viewing with a single click
Direct image and report transfer to computer via network or USB using iStorage
iStation Patient Information Management System supports integration, review, archiving, and retrieval of case data
DICOM 3.0 compliance ensures seamless connectivity and data management within veterinary imaging workflow
Battery operation (approximately 1.5 hours) supports mobile and field use
Large built-in storage capacity (up to 1 TB) accommodates image archives and patient data

Components

Advanced imaging engine with PSH, iClear, iBeam, iScape, ExFOV, Trapezoid, B‑Steer, and PW Doppler technologies (with Auto Trace), optional color Doppler
15" high-resolution tiltable LCD screen
Rechargeable battery (approximate scan time 1.5 hours)
Internal hard drive with up to 1 TB capacity
Two universal probe connectors
Workflow tools: iTouch, iZoom, iStorage, and iStation
Connectivity with DICOM 3.0

Instructions for Use

This system is intended for use under the supervision of a veterinarian for diagnostic examinations using ultrasound imaging in various animal species. The system supports black-and-white imaging with the option to add color Doppler and PW Doppler. Probes are connected via universal ports, and imaging modes and workflow features are accessed through the control panel. Battery operation allows for examinations on the go. Specific imaging protocols, including type, body weight, and clinical condition, should be determined by a qualified veterinarian.

Package Size

Includes DP‑50 Vet unit, rechargeable battery, 15" tiltable LCD screen, two universal probe ports, and internal storage. Probes are sold separately and may include micro-convex, convex, linear, transrectal, or special veterinary probes depending on clinical needs.

Note

Color Doppler and PW Doppler functionality may be available depending on configuration. Probes should be selected according to the animal type and clinical application. Battery life and storage capacity support mobile and high-volume workflow.
