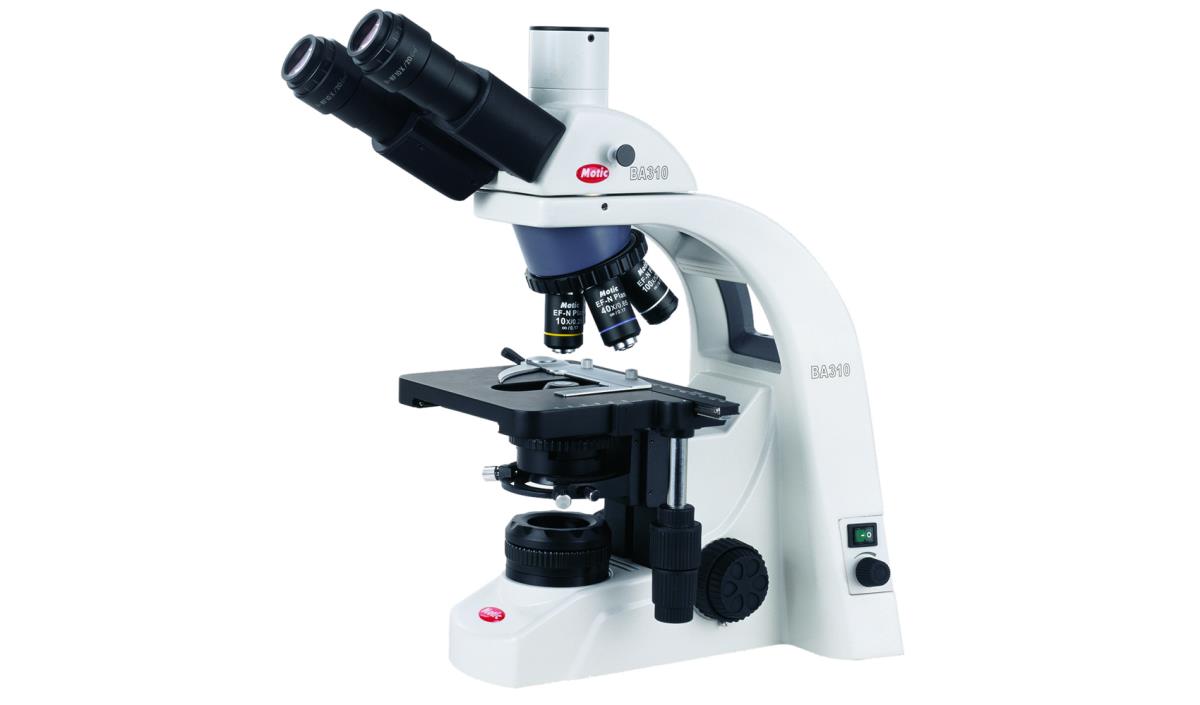

PHASE CONTRAST MICROSCOPE MOTIC, HEATED, WITH PHOTOTUBE FOR
This Motic phase contrast microscope is a professional product for veterinary or laboratory use, designed for precise applications such as sperm analysis using CASA systems. It features a heated mechanical stage and a phototube for camera integration, providing better sample stability and flexibility in imaging.
Phase contrast optics for clear viewing of transparent samples
The heated stage supports the examination of heat-sensitive samples
Trinocular head with phototube for easy integration of imaging systems
LED illumination with Köhler system and intensity control for consistent lighting
Large mechanical stage with precise X and Y axis control for accurate sample positioning
Robust design withstands intensive daily use in laboratories
10× negative phase lens
LED illumination system with Köhler system and intensity control
30° trinocular head with phototube for camera integration
Phase condenser with Ph1 and Ph2 lenses, plus Abbe condenser
Wide-field 10× eyepieces with diopter adjustment and centering reticle
Large mechanical stage measuring 175 × 140 mm with integrated heating system and sample holder
Power supply compatible with 100–240 V
Includes dust cover
Use the optical path through the eyepieces or phototube for imaging
Activate stage heating via the integrated system
Adjust light intensity using LED Köhler control
Precisely position the sample using X and Y stage controls
Achieve phase contrast using Ph1 and Ph2 settings on the condenser
Connect the camera via the phototube using a compatible C-mount adapter
Operating parameters should be determined according to sample type and experimental requirements by a qualified professional
Phase contrast microscope unit with heated stage and phototube
Includes LED illumination, phase condenser, lenses, eyepieces, and dust cover
Requires a temperature control unit for stage heating
Designed for use with CASA systems such as AndroVision®
This Motic phase contrast microscope is a professional product for veterinary or laboratory use, designed for precise applications such as sperm analysis using CASA systems. It features a heated mechanical stage and a phototube for camera integration, providing better sample stability and flexibility in imaging.
Main Benefits
Phase contrast optics for clear viewing of transparent samples
The heated stage supports the examination of heat-sensitive samples
Trinocular head with phototube for easy integration of imaging systems
LED illumination with Köhler system and intensity control for consistent lighting
Large mechanical stage with precise X and Y axis control for accurate sample positioning
Robust design withstands intensive daily use in laboratories
Specifications
10× negative phase lens
LED illumination system with Köhler system and intensity control
30° trinocular head with phototube for camera integration
Phase condenser with Ph1 and Ph2 lenses, plus Abbe condenser
Wide-field 10× eyepieces with diopter adjustment and centering reticle
Large mechanical stage measuring 175 × 140 mm with integrated heating system and sample holder
Power supply compatible with 100–240 V
Includes dust cover
Instructions for Use
Use the optical path through the eyepieces or phototube for imaging
Activate stage heating via the integrated system
Adjust light intensity using LED Köhler control
Precisely position the sample using X and Y stage controls
Achieve phase contrast using Ph1 and Ph2 settings on the condenser
Connect the camera via the phototube using a compatible C-mount adapter
Operating parameters should be determined according to sample type and experimental requirements by a qualified professional
Package Size
Phase contrast microscope unit with heated stage and phototube
Includes LED illumination, phase condenser, lenses, eyepieces, and dust cover
Note
Requires a temperature control unit for stage heating
Designed for use with CASA systems such as AndroVision®
