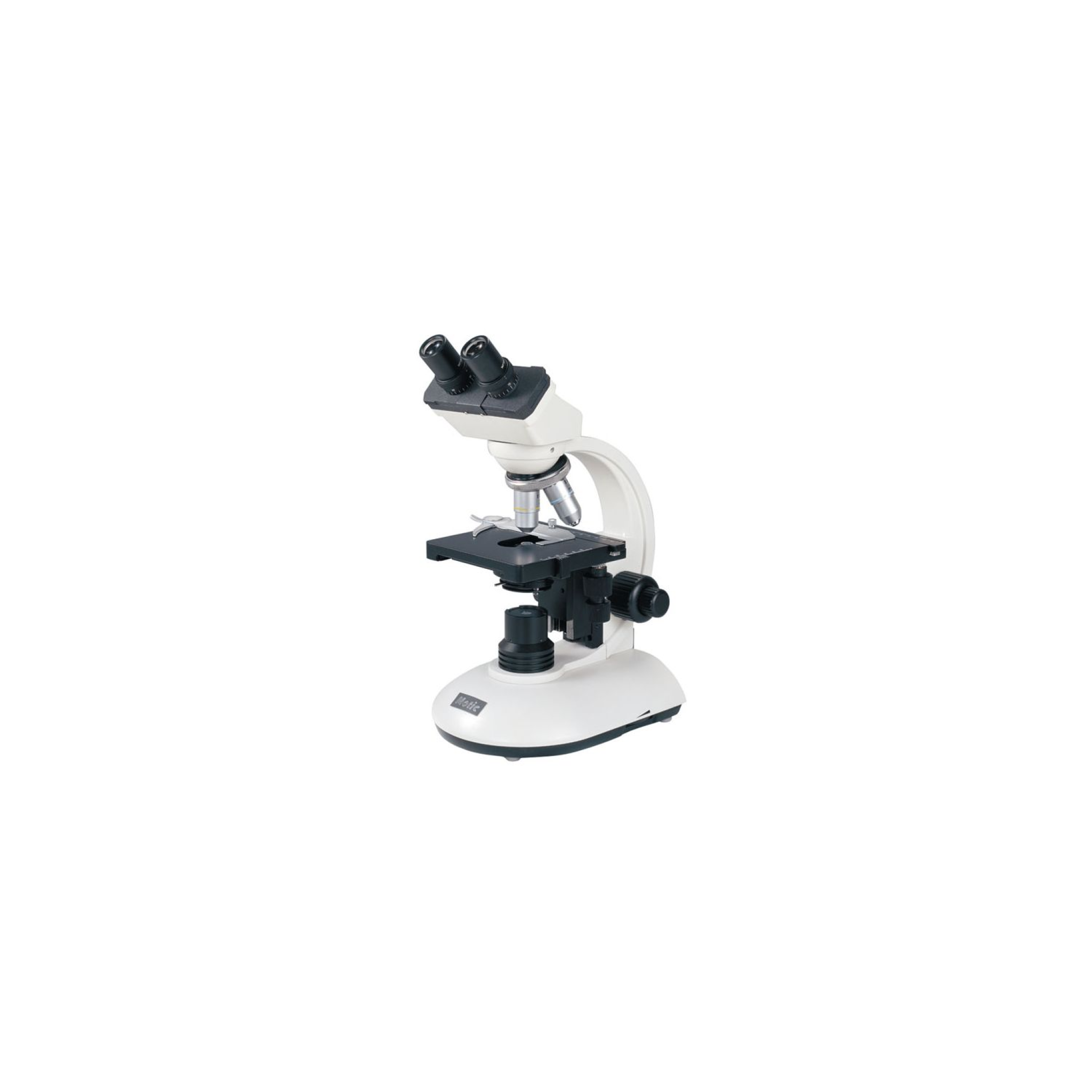

Motic 2820 LED Microscope
دفع آمن مضمون
The provided text does not relate to pet products. Here is the translation to Arabic:
The Motic 28 series offers a unique ergonomic design along with superior optics compared to standard DIN objectives.
Reliable and high-quality microscope at an affordable price.
Key features
- Binocular head, 45° inclined and 360° rotatable
- Wide-field eyepieces WF10X / 18mm
- Quadruple head
- Achromatic objectives 4x, 10x, 40x, 100x (oil)
- Coaxial coarse and fine focus adjustment
- Low-profile mechanical stage
- Abbe condenser 1.25 N.A. focusable with gears
- Iris diaphragm with filter holder
- LED lighting with intensity control for more accurate texture color compared to traditional halogen
- Optical system: Finite optical system, 160mm
- Observation tube: Monocular
- Interpupillary distance: 55-75mm
- Diopter adjustment: On both tubes, +/- 5 diopter
- Inclination: 45° inclined, 360° rotatable
- Eyepiece: WF 10X / 18mm
- Lens head: Inverted quadruple revolving head with stops
- Lens classification: Achromatic, DIN
- Lens information: 4X / 0.10, 10X / 0.25, 40X / 0.65 / S
- Lens mounting thread: W 4/5" x 1/36" (RMS standard)
- Stage: Low-profile mechanical stage with sample holder
- Stage size: 133 X 136mm
- Movement range in X and Y directions: 77 x 31mm
- Upper limit stop: Pre-set but adjustable
- Condenser: Abbe condenser 1.25 N.A. focusable with iris
- Focus mechanism: Coarse and fine focusing system with tension adjustment
- Fine focus accuracy: 2um minimum increment
- Z-axis movement: 12mm
- Filter: Built-in frosted glass
- Lighting: LED 20mA, 3.5V, 70mW with intensity control
- Converter: External
- Power supply: Charger 100 - 240V or rechargeable batteries
- Included accessories: Dust cover, charger, and batteries
