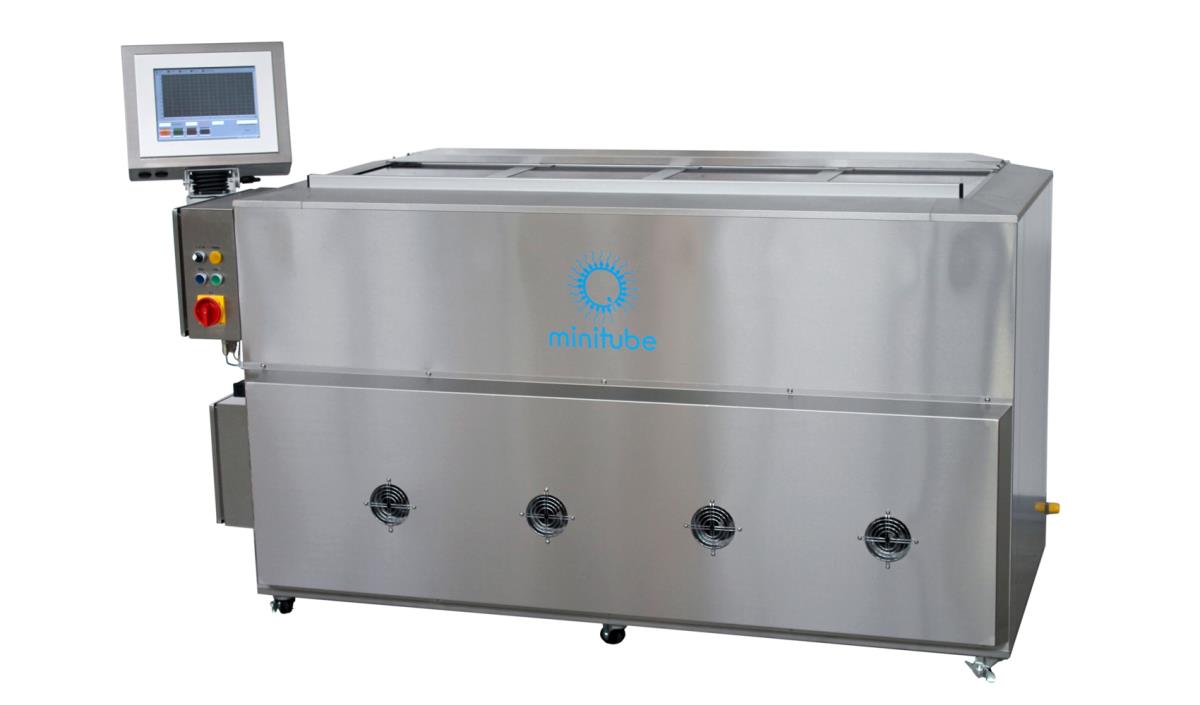

TURBOFREEZER L FOR FREEZING BULL SEMEN IN STRAWS
Guaranteed safe payment
TURBOFREEZER L for Freezing Bull Semen in Vials
TurboFreezer L for freezing bull semen in vials is a high-capacity, programmable veterinary product designed to provide uniform and efficient cryopreservation of bovine semen. It features a stainless steel freezing chamber with directed nitrogen flow and a programmable logic controller with a touchscreen, allowing precise control and documentation of each freezing cycle.
Uniform temperature distribution throughout the chamber via directed nitrogen flow and multiple fans
High capacity for efficiently processing large batches of semen
Programmable freezing curves with cycle documentation and data export capability
Ergonomic design for easy handling of racks and vials
Ability to start subsequent freezing cycles immediately, saving time and resources
Stainless steel freezing chamber with directed nitrogen flow system
Programmable logic controller with touchscreen
Multiple LN₂ injection ports and fans for uniform gas distribution
Temperature sensors for monitoring the chamber and sample
Goblet holders, vial forceps, and funnel for filling vials into goblets
Used under veterinary supervision for freezing bull semen in vials
Vials are placed on racks and inserted into the freezing chamber
Freezing is performed using programmable curves controlled via the touchscreen
Freezing cycle data is recorded and can be exported for analysis
A qualified veterinarian should determine specific dosages and protocols based on species, body weight, and clinical condition
Includes two devices for holding four goblets each
Includes vial forceps with a holding box and funnel for filling vials into goblets (65 mm)
Capacity supports up to 30 racks of 0.25 ml vials (175 per rack) or 30 racks of 0.5 ml vials (100 per rack)
Electrical connection: 220 V/50 Hz (220 V/60 Hz optional); Required nitrogen pressure: 2.5 bar
Chamber dimensions: approximately 145 × 41 × 32 cm (W × H × D); External dimensions: approximately 222 × 132 × 86 cm (W × H × D)
TurboFreezer L for freezing bull semen in vials is a high-capacity, programmable veterinary product designed to provide uniform and efficient cryopreservation of bovine semen. It features a stainless steel freezing chamber with directed nitrogen flow and a programmable logic controller with a touchscreen, allowing precise control and documentation of each freezing cycle.
Main Benefits
Uniform temperature distribution throughout the chamber via directed nitrogen flow and multiple fans
High capacity for efficiently processing large batches of semen
Programmable freezing curves with cycle documentation and data export capability
Ergonomic design for easy handling of racks and vials
Ability to start subsequent freezing cycles immediately, saving time and resources
Components
Stainless steel freezing chamber with directed nitrogen flow system
Programmable logic controller with touchscreen
Multiple LN₂ injection ports and fans for uniform gas distribution
Temperature sensors for monitoring the chamber and sample
Goblet holders, vial forceps, and funnel for filling vials into goblets
Instructions for Use
Used under veterinary supervision for freezing bull semen in vials
Vials are placed on racks and inserted into the freezing chamber
Freezing is performed using programmable curves controlled via the touchscreen
Freezing cycle data is recorded and can be exported for analysis
A qualified veterinarian should determine specific dosages and protocols based on species, body weight, and clinical condition
Package Size
Includes two devices for holding four goblets each
Includes vial forceps with a holding box and funnel for filling vials into goblets (65 mm)
Note
Capacity supports up to 30 racks of 0.25 ml vials (175 per rack) or 30 racks of 0.5 ml vials (100 per rack)
Electrical connection: 220 V/50 Hz (220 V/60 Hz optional); Required nitrogen pressure: 2.5 bar
Chamber dimensions: approximately 145 × 41 × 32 cm (W × H × D); External dimensions: approximately 222 × 132 × 86 cm (W × H × D)
