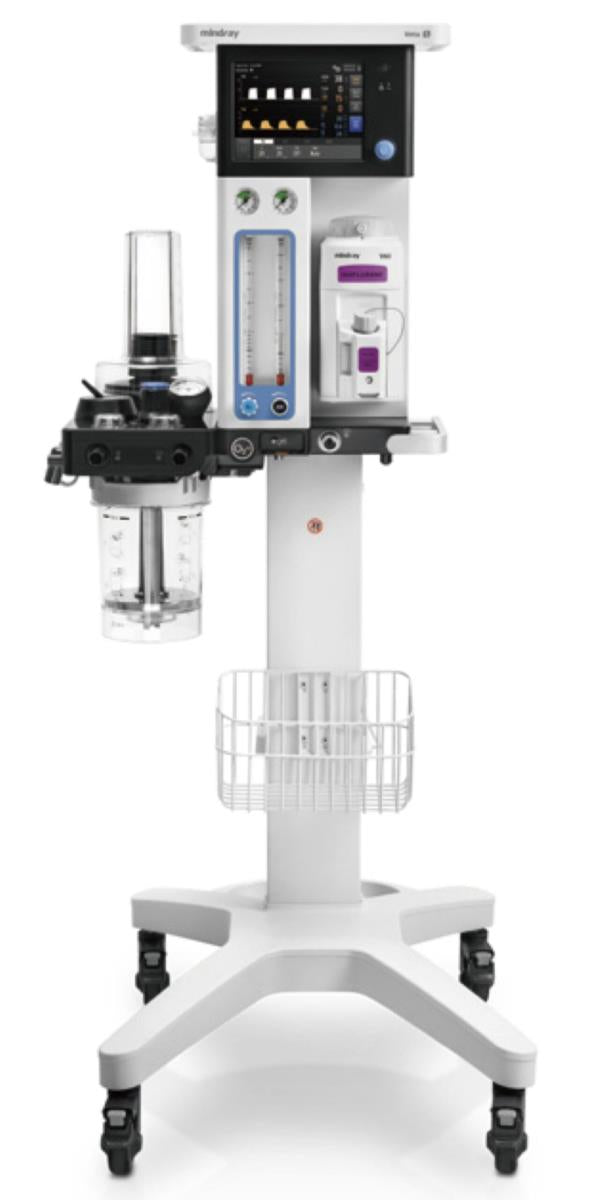

VETA 5 ANESTHESIA MACHINE The VETA 5 anesthesia machine is a veterinary product designed to provide precise and intelligent ventilation and anesthesia delivery in animal care environments. It features an integrated turbine-driven ventilator, eliminating the need for external drive gas, allowing operation with an oxygen concentrator or compressed gases. The machine supports a wide tidal volume range, making it suitable for patients from small to large animals.

Main Benefits

- Integrated turbine-driven ventilator, no need for external drive gas
- Wide tidal volume range (approximately 5 ml to 1500 ml) for patients from small to large
- Smart preset ventilation settings based on patient weight for ease of use and safety assurance
- Multiple ventilation modes including VS (Volume Support), VCV (Volume-Controlled Ventilation), with PCV (Pressure-Controlled Ventilation) and SIMV (Synchronized Intermittent Mandatory Ventilation) as additional options
- Intelligent alarm management with adjustable alerts and safety features like backup ventilation upon apnea and rapid oxygen flush system
- Integrated breathing system reduces leakage risk and simplifies setup
- High-precision vaporizer (Isoflurane or Sevoflurane) for accurate anesthetic agent delivery
- Optional monitoring modules like side-stream CO₂ to enhance patient safety
- Compact and mobile design with a touchscreen interface for intuitive operation

Configuration

- Turbine-driven ventilator
- Approximately 8-inch capacitive touchscreen
- Integrated breathing circuit (rebreathing and non-rebreathing systems)
- Vaporizer (Isoflurane or Sevoflurane)
- Intelligent alarm management system
- Optional modules: side-stream CO₂ monitoring, oxygen sensor, gas absorption canister reminder
- Mobile cart with lockable wheels
- Backup battery to ensure operation during power outages

Instructions for Use

The system is used via the integrated turbine-driven ventilator; it can be operated using an oxygen concentrator or compressed gases. Ventilation mode and tidal volume are selected via the touchscreen, with smart presets based on patient weight. A qualified veterinarian should determine the dosage and specific settings based on the animal type, weight, and clinical condition.

Package Size

Includes the VETA 5 anesthesia machine with integrated ventilator and touchscreen, vaporizer (Isoflurane or Sevoflurane), breathing circuit, mobile cart with lockable wheels, and backup battery. Optional configurations may include modules like CO₂ monitoring or oxygen sensor depending on the setup.

Note

The VETA 5 Plus version, available since summer 2024, adds integrated carbon dioxide measurement data for enhanced automatic ventilation control (VS+ mode).
