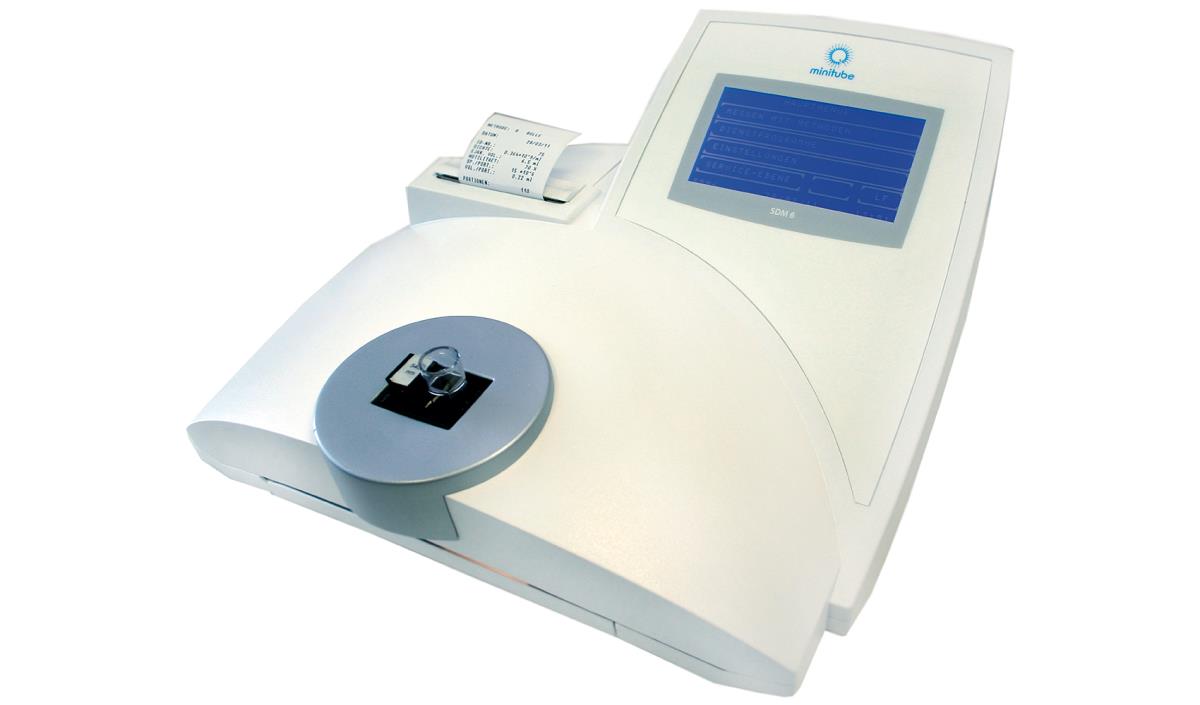

PHOTOMETER SDM 6 WITH INTEGRATED PRINTER
The PHOTOMETER SDM 6 WITH INTEGRATED PRINTER is a precise veterinary product designed to measure semen concentration across various animal species and facilitate dosage calculations. It features an easy-to-use touchscreen, rapid analysis, and integrated printing of essential production data, making it an effective tool for reproductive laboratories and breeding facilities.
Programs for determining semen concentration in bull, boar, horse, ram, and goat samples
Automatic calculation of extender volume and number of doses
Large touchscreen for easy operation
Fast analysis time of approximately two seconds per sample
Integrated printer that prints semen quality and quantity, required extender volume, and sperm count per dose
Serial and parallel interfaces for easy data transfer
Optical system with halogen light source and 546 nm wavelength filter
Approximate spectral range from 340 to 578 nm
Uses macro cuvettes with a thickness of 10 mm for sample measurement
Integrated thermal printer
Touchscreen display
Power supply compatible with 110–230 volts, 50–60 Hz
Designed for photometric measurement of semen concentration and dosage calculation via touchscreen interface
Includes integrated printer for recording production data per ejaculate
Interfaces available for data transfer to external systems
Dosage and dilution protocols should be determined by a qualified veterinarian based on species, body weight, and clinical condition
Photometer unit with integrated printer (reference 12300/0006)
Optional accessories include printer paper (reference 12300/0311), macro cuvettes (reference 12301/0003), and control cuvette set (reference 12300/0010)
This veterinary product supports an efficient and accurate workflow for semen analysis and dosage calculation. For precise protocols and integration into your laboratory operations, please consult your veterinary technical advisor.
The PHOTOMETER SDM 6 WITH INTEGRATED PRINTER is a precise veterinary product designed to measure semen concentration across various animal species and facilitate dosage calculations. It features an easy-to-use touchscreen, rapid analysis, and integrated printing of essential production data, making it an effective tool for reproductive laboratories and breeding facilities.
Main Benefits
Programs for determining semen concentration in bull, boar, horse, ram, and goat samples
Automatic calculation of extender volume and number of doses
Large touchscreen for easy operation
Fast analysis time of approximately two seconds per sample
Integrated printer that prints semen quality and quantity, required extender volume, and sperm count per dose
Serial and parallel interfaces for easy data transfer
Specifications
Optical system with halogen light source and 546 nm wavelength filter
Approximate spectral range from 340 to 578 nm
Uses macro cuvettes with a thickness of 10 mm for sample measurement
Integrated thermal printer
Touchscreen display
Power supply compatible with 110–230 volts, 50–60 Hz
Instructions for Use
Designed for photometric measurement of semen concentration and dosage calculation via touchscreen interface
Includes integrated printer for recording production data per ejaculate
Interfaces available for data transfer to external systems
Dosage and dilution protocols should be determined by a qualified veterinarian based on species, body weight, and clinical condition
Package Size
Photometer unit with integrated printer (reference 12300/0006)
Optional accessories include printer paper (reference 12300/0311), macro cuvettes (reference 12301/0003), and control cuvette set (reference 12300/0010)
Note
This veterinary product supports an efficient and accurate workflow for semen analysis and dosage calculation. For precise protocols and integration into your laboratory operations, please consult your veterinary technical advisor.
